In my last post on ARO 4, I have already walk through the steps to set up the Azure environment for creating ARO 4. My 2nd round testing requires the following specific requirements:

Use only one app registration
Not to use pull secret

You will need to complete the session for setting up Azure environment in my previous blog for ARO 4.

Create ARO 4 Cluster with existing service principal

Create a service principal

From the previous test, I learned that the process of creating ARO 4 will create a service principal. I am going to create a service principal before creating cluster.

$ az ad sp create-for-rbac --role Contributor --name all-in-one-sp

This command will return the appId and password information that we will need for the ARO 4 create command later.

Adding API permission to the service principal

Login to Azure Portal
Go to Azure Active Directory
Click App registrations
Click “All applications”
Search for “app-in-one-sp”
Click “View API permission”
Click “Add a permission”
Click “Azure Active Directory Graph”
Click “Delegated Permissions”
Check “User.Read”
Click “Add permission” button at the bottom.
Click “Grant admin consent …”

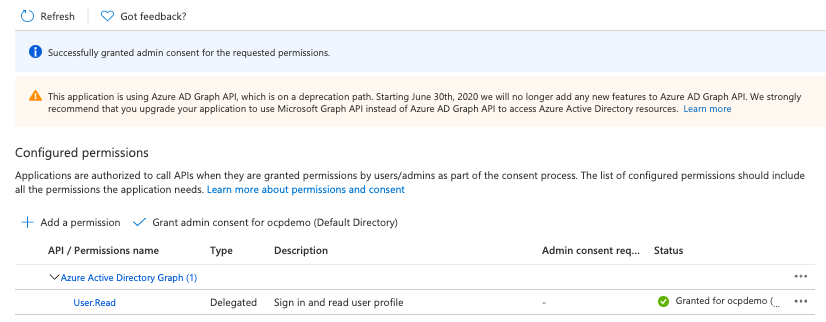

A green check mark is shown under Status as shown below

Create ARO with existing service principal without pull secret

az aro create \
--resource-group $RESOURCEGROUP \
--name $CLUSTER \
--client-id <service principal application id> \
--client-secret <service principal password> \
--vnet aro-vnet \
--master-subnet master-subnet \
--worker-subnet worker-subnet \
--domain aro.ocpdemo.online

When I opted out the pull secret option, I will get the following message from the output of the azure cli.

No --pull-secret provided: cluster will not include samples or operators from Red Hat or from certified partners.

Adding api and ingress A record to the DNS zone

Using the output from the ARO 4 creation, Use the IP from the “apiserverProfile” portion is for api servier. The IP from “ingressProfiles” is for ingress. The example is shown below.

Test out the ARO cluster

az aro list-credentials \
--name $CLUSTER \
--resource-group $RESOURCEGROUP

Open the following URL from the browser and login using the kubeadmin with password from the above command

https://console-openshift-console.apps.<DNS domain>/

Integrate Azure Active Directory

The following steps are for getting the OAuth call back URL.

$ oc login -u kubeadmin -p <password> https://api.<DNS domain>:6443/
$ oauthCallBack=`oc get route oauth-openshift -n openshift-authentication -o jsonpath='{.spec.host}'`
$ oauthCallBackURL=https://$oauthCallBack/oauth2callback/AAD
$ echo $oauthCallBackURL

where AAD is the name of the identity provider for OAuth configuration on OpenShift

Add the OAuth call back URL to the same service principal

Go to Azure Active Directory
Click App registration
Click on “all-in-one-sp” under all applications
Under Overview, click right top corner link for “Add a Redirect URI”
Click “Add a platform”
Click Web Application from the list of Configure platforms

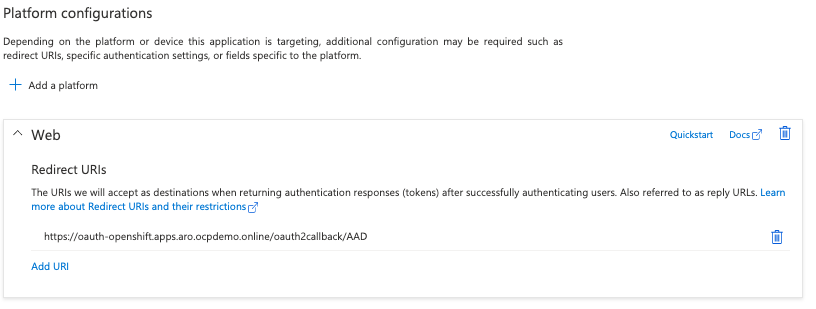

Enter the value of the oauthCallBackURL from the previous step to the “Redirect URIs”
Click configure

Create a manifest file

cat > manifest.json<< EOF
[{ "name": "upn",
"source": null,
"essential": false,
"additionalProperties": []
},
{ "name": "email",
"source": null,
"essential": false,
"additionalProperties": []
}]
EOF

Update service principal with the manifest

$ az ad app update \
 --set optionalClaims.idToken=@manifest.json \
 --id <Service Principal appId>

Create secret to store service principal’s password

oc create secret generic openid-client-secret-azuread \
--namespace openshift-config \
--from-literal=clientSecret=<service principal password>

Create OAuth configuration

apiVersion: config.openshift.io/v1
kind: OAuth
metadata:
  name: cluster
spec:
  identityProviders:
  - name: AAD
    mappingMethod: claim
    type: OpenID
    openID:
      clientID: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
      clientSecret:
        name: openid-client-secret-azuread
      extraScopes:
      - email
      - profile
      extraAuthorizeParameters:
        include_granted_scopes: "true"
      claims:
        preferredUsername:
        - email
        - upn
        name:
        - name
        email:
        - email
      issuer: https://login.microsoftonline.com/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx

Apply the OAuth YAML

oc apply -f openid.yaml

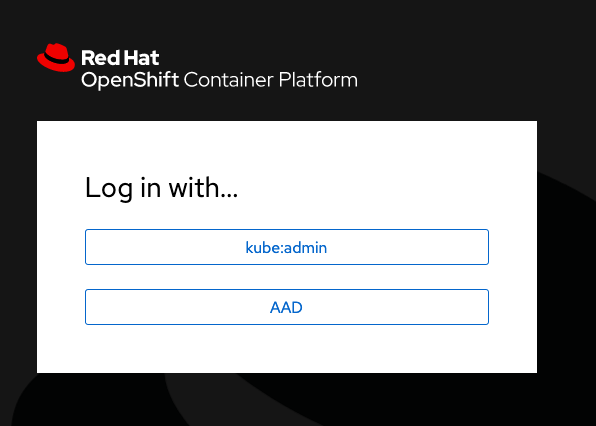

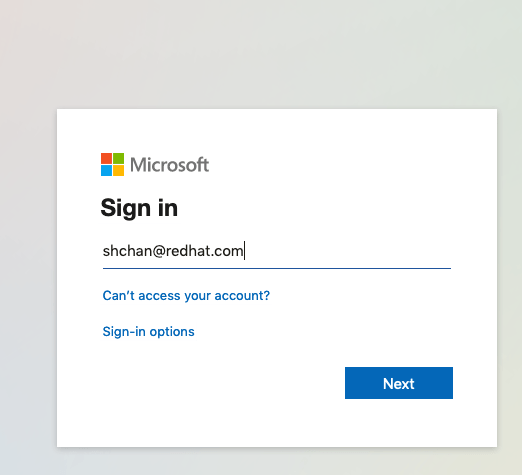

Login openshift console via AAD

Reference

I happened to test out ARO 4 with Azure Active Directory integration. The Azure documentation is good, but I had to change a few while testing the steps. I am sharing my experience here and hope someone will find it useful.

Setting the requirements

Install or update Azure CLI

brew update && brew install azure-cli

Make sure you have permission to create resources in the resource group. I logged in as a global administrator when I am testing this.

Setup the environment variables

$ cat aro-env
LOCATION=centralus. # the location of your cluster
RESOURCEGROUP=aro-rg # the name of the resource group where you want to create your cluster
CLUSTER=poc #cluster-id of the ARO 4 cluster
$ source aro-env

Log in Azure

az login

Create a Resource Group

az group create \
--name $RESOURCEGROUP \
--location $LOCATION

Add DNS zone

If you don’t have a DNS zone already, you can use this step.

Login Azure Portal
Type: “DNS Zones” in the search box on the top and click on “DNS Zones”
Click “+Add” on the top
Select the newly created resource group
Enter your domain
Select the location
Create “Review+Create”

Notes:

I am using a domain name outside of the Azure. You will need to add the NS records from the overview page of the DNS zone to your domain.
Request increase of quota from Azure portal. ARO requires a minimum of 40 cores.

Register Resource Provider

az account set --subscription
az provider register -n Microsoft.RedHatOpenShift --wait
az provider register -n Microsoft.Compute --wait
az provider register -n Microsoft.Storage --wait

Create a Virtual Network

az network vnet create \
--resource-group $RESOURCEGROUP \
--name aro-vnet \
--address-prefixes 10.0.0.0/22

Create an empty subnet for master nodes

az network vnet subnet create \
--resource-group $RESOURCEGROUP \
--vnet-name aro-vnet \
--name master-subnet \
--address-prefixes 10.0.0.0/23 \
--service-endpoints Microsoft.ContainerRegistry

Create an empty subnet for worker nodes

az network vnet subnet create \
--resource-group $RESOURCEGROUP \
--vnet-name aro-vnet \
--name worker-subnet \
--address-prefixes 10.0.2.0/23 \
--service-endpoints Microsoft.ContainerRegistry

Disable private endpoint policy

az network vnet subnet update \
--name master-subnet \
--resource-group $RESOURCEGROUP \
--vnet-name aro-vnet \
--disable-private-link-service-network-policies true

Once the above steps are done. You don’t have to redo the steps if you are going to reuse the names and resources.

Create Cluster

Please make sure you log in to Azure and environment variables are set.

Information that we need for creating a cluster

Get a copy of the pull secret from cloud.redhat.com. If you don’t have a user name created, please just register as a user for free.
Create an ARO cluster using the following command. Please apply to appropriate values.
Some values were used in the example are explained as shown below.
- aro-vnet – the name of virtual network
- master-subnet – the name of master subnet
- worker subnet – the name of worker subnet
- ./pull-secret.txt – the path and pull secret where is located
- aro.ocpdemo.online – custom domain for the cluster

az aro create \
--resource-group $RESOURCEGROUP \
--name $CLUSTER \
--vnet aro-vnet \
--master-subnet master-subnet \
--worker-subnet worker-subnet \
--pull-secret @./pull-secret.txt \
--domain aro.ocpdemo.online

The information from the JSON output of the above command can be useful if you are not familiar with OpenShift 4. You can find your API server IP, API URL, OpenShift console URL and ingress IP. You will need the API, and ingress IP for the next step.

{- Finished ..
"apiserverProfile": {
"ip": "x.x.x.x",
"url": "https://api.aro.ocpdemo.online:6443/",
"visibility": "Public"
...
},
"consoleProfile": {
"url": "https://console-openshift-console.apps.aro.ocpdemo.online/"
},
....
"ingressProfiles": [
{
"ip": "x.x.x.x",
"name": "default",
"visibility": "Public"
}
....

Post ARO Installation

Adding two A records for api and *.apps in the DNS zone

Login to Azure portal
Go to DNS zone
Click onto the domain for the ARO cluster
Click “+ Record Set” on the top menu to create an A record and add values to Name and IP. You will need to repeat this step for both api and *.apps A records.
- Name: api or *.apps
- IP: the *.apps/ingress IP is from the output of the creation of the ARO

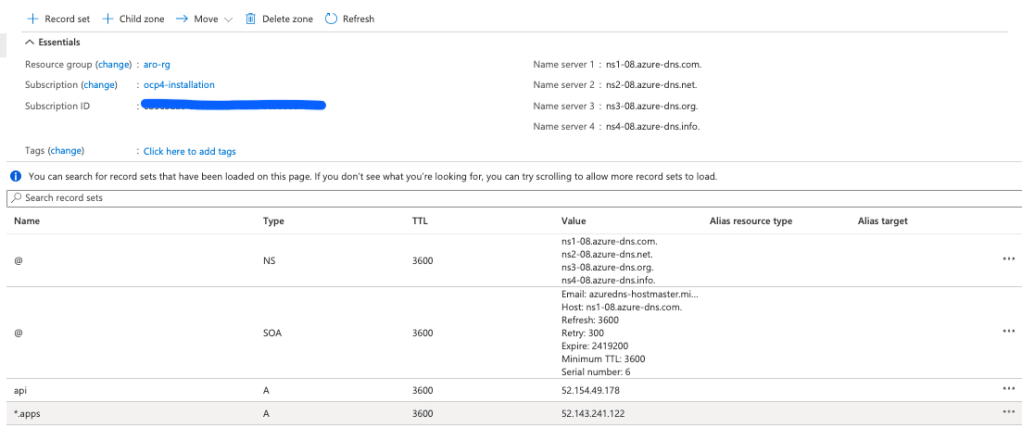

The below screenshot shows the DNS zone configuration and adding 2 A records.

Test ARO Cluster

Getting Kubeadmin credential

az aro list-credentials \
--name $CLUSTER \
--resource-group $RESOURCEGROUP

The command will return the kubeadmin credential.

Log in OpenShift Console

Open a browser and go to the OpenShift console or look for “consoleProfile” from the JSON output from ARO creation

https://console-openshift-console.apps.<DNS domain>/

The login user is kubeadmin and the password is the credential from the last command. Congrats!! The ARO installation is completed!

Azure Active Directory Integration

Getting oauthCallBackURL

Download OpenShift command line tool from console.

Download the OpenShift Command Lind Interface (CLI) from there. Once you extract it and add to the PATH. You can move on to the next step.

$ oc login -u kubeadmin -p <password> https://api.<DNS domain>:6443/

$ oauthCallBack=`oc get route oauth-openshift -n openshift-authentication -o jsonpath='{.spec.host}'`

$ oauthCallBackURL=https://$oauthCallBack/oauth2callback/AAD

Note: AAD is the name of the identity provider when configuring OAuth on OpenShift

Creating Application on Azure Active Directory

az ad app create \
  --query appId -o tsv \
  --display-name poc-aro-auth \
  --reply-urls $oauthCallBackURL \
  --password '<ClientSecret>'

Note: Please note that the above command returns the registered Application Id (AppId) which you will need it when configuring the OAuth on OpenShift.

Get tenant Id

az account show --query tenantId -o tsv

Note: Please note that you will need the tenant Id for the OAuth configuration on OpenShift

Create manifest file

cat > manifest.json<< EOF
[{
"name": "upn",
"source": null,
"essential": false,
"additionalProperties": []
},
{
"name": "email",
"source": null,
"essential": false,
"additionalProperties": []
}]
EOF

Update the Azure Active Directory with a manifest

az ad app update \
--set optionalClaims.idToken=@manifest.json \
--id <AppId>

Update Application permission scope

az ad app permission add \
--api 00000002-0000-0000-c000-000000000000 \
--api-permissions 311a71cc-e848-46a1-bdf8-97ff7156d8e6=Scope \
--id <AppId>

Grant admin consent

login Azure portal
Go to Azure Active Directory
Click App Registrations
Click “All Application” and search for newly create application name
Click onto the display name of the application
Click view API permissions
Click on the “check” to grant admin consent for directory

Add service principal

$ az ad sp create-for-rbac --role Contributor --name poc-aro-sp

You will need the “appId” from the output of the above command and that is the appId for the service principal

$az role assignment create --role "User Access Administrator" \
--assignee-object-id $(az ad sp list --filter "appId eq '<service-principal-appid>'" \
| jq '.[0].objectId' -r)

$az ad app permission add --id <appId> \
--api 00000002-0000-0000-c000-000000000000 \
--api-permissions 824c81eb-e3f8-4ee6-8f6d-de7f50d565b7=Role

This will output the follow command as shown below.

$az ad app permission grant --id <appid> --api 00000002-0000-0000-c000-000000000000

I also grant the admin consent for the API permission for the service principal.

Create secret for identity provider on OpenShift

oc create secret generic openid-client-secret-azuread \
--namespace openshift-config \
--from-literal=clientSecret=<your password>

Create YAML for identity provider for AAD

apiVersion: config.openshift.io/v1
kind: OAuth
metadata:
  name: cluster
spec:
  identityProviders:
  - name: AAD
    mappingMethod: claim
    type: OpenID
    openID:
      clientID: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
      clientSecret:
        name: openid-client-secret-azuread
      extraScopes:
      - email
      - profile
      extraAuthorizeParameters:
        include_granted_scopes: "true"
      claims:
        preferredUsername:
        - email
        - upn
        name:
        - name
        email:
        - email
      issuer: https://login.microsoftonline.com/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx

Note:

The clientID is the AppId of your registered application.
Issuer URL is https://login.microsoftonline.com/<tenant id>.
The clientSecret is using the secret (openid-client-secret-azuread) that you created from the previous step.

Alternatively, you can obtain the clientID and tenant id from Azure Portal.

Login Azure Portal
Click Home
Click Azure Active Directory
Click App registrations on the left menu
Click all applications tab
Type the application that you just created in the search area
Click onto the application (my application is poc-aro-auth)
Under Overview, the information is shown as “Application (client) ID” and Directory (tenant) ID” as in the image below.
